AirShot

Efficient Few-Shot Detection for Autonomous Exploration

IROS 2024

Zihan Wang1,2, Bowen Li2, Chen Wang2,3, Sebastian Scherer2
1Institute for Imaging, Data and Communications, The University of Edinburgh
2Robotics Institute, Carnegie Mellon University
3Spatial AI & Robotics (SAIR) Lab, University at Buffalo
Paper arXiv Code Data

Overview

AirShot detects novel objects from a few annotated support images without novel-class fine-tuning at deployment. Its Top Prediction Filter (TPF) learns from query-support correlation maps and selects likely classes to reduce class-wise inference loops. The method is evaluated on COCO, Pascal VOC and the DARPA SubT setting. Offline base training is required, and the class-selection setting controls the accuracy-latency tradeoff.




Given 3-shot support images, AirShot can directly detect the novel objects without fine-tuning.

(The left are few-shot annotations online provided by user and right is the detection results)




More robust and effective(play in fixed fps).




AirShot shows substantial improvement regarding both the efficiency and effectiveness(play in relative fps).

Accuracy and inference time

TPF has two roles: it supervises correlation-map learning during offline training and filters candidate classes during inference. The no-fine-tuning claim applies to deployment on novel classes after base training.

Inference time in the paper's Top-10 experiment (Table IV)
SettingReported time
Full-loop base0.733 s
COCO, TPF + Top 100.392 s
VOC, TPF + Top 100.386 s

Source: Table IV and Section IV-D. These are measured inference times under the paper's experimental setup, which reports four NVIDIA A100 GPUs for training and evaluation. They are not FLOP counts or Jetson latency measurements. The separate SubT demonstration uses an NVIDIA Jetson AGX Xavier. Top-10 filtering has a measured accuracy tradeoff; see the original table for shot-specific results.

Scope and limitations. AirShot is intended for example-based novel-object detection in robot exploration. Filtering gains depend on the number of candidate classes and the quality of the correlation maps; benefits diminish when most candidate classes occur in a query image. The original abstract below retains the paper's wording; the table above states the measured timing quantities directly.

Original paper abstract

Few-shot object detection has drawn increasing attention in the field of robotic exploration, where robots are required to find unseen objects with a few online provided examples. Despite recent efforts have been made to yield online processing capabilities, slow inference speeds of low-powered robots fail to meet the demands of real-time detection-making them impractical for autonomous exploration.

Existing methods still face performance and efficiency challenges, mainly due to unreliable features and exhaustive class loops.

In this work, we propose a new paradigm AirShot, and discover that, by fully exploiting the valuable correlation map, AirShot can result in a more robust and faster few-shot object detection system, which is more applicable to robotics community. The core module Top Prediction Filter (TPF) can operate on multi-scale correlation maps in both the training and inference stages. During training, TPF supervises the generation of a more representative correlation map, while during inference, it reduces looping iterations by selecting top-ranked classes, thus cutting down on computational costs with better performance. Surprisingly, this dual functionality exhibits general effectiveness and efficiency on various off-the-shelf models.

Exhaustive experiments on COCO2017, VOC2014, and SubT datasets demonstrate that TPF can significantly boost the efficacy and efficiency of most off-the-shelf models, achieving up to 36.4% precision improvements along with 56.3% faster inference speed. Pre-trained model, Code and Data are also released.

Contribution

  • We proposed a new model AirShot that fully exploits the valuable knowledge in the correlation map. Its core module TPF, a plug-and-play design, also works generally for various FSOD models [1], [8]. The efficiency and effectiveness brought by TPF offer substantial advancements in robot autonomous exploration tasks.
  • We comprehensively tested AirShot across two widely used datasets, MS-COCO and Pascal VOC. Tables II and III report detection accuracy under full-loop inference; Table IV reports the accuracy and timing tradeoff under Top-10 class filtering. These are distinct experimental settings.
  • To demonstrate its effectiveness for real-world environments, we also tested our system with a challenging FSOD dataset collected from the DARPA Subterranean (SubT) Challenge by our team.

Method

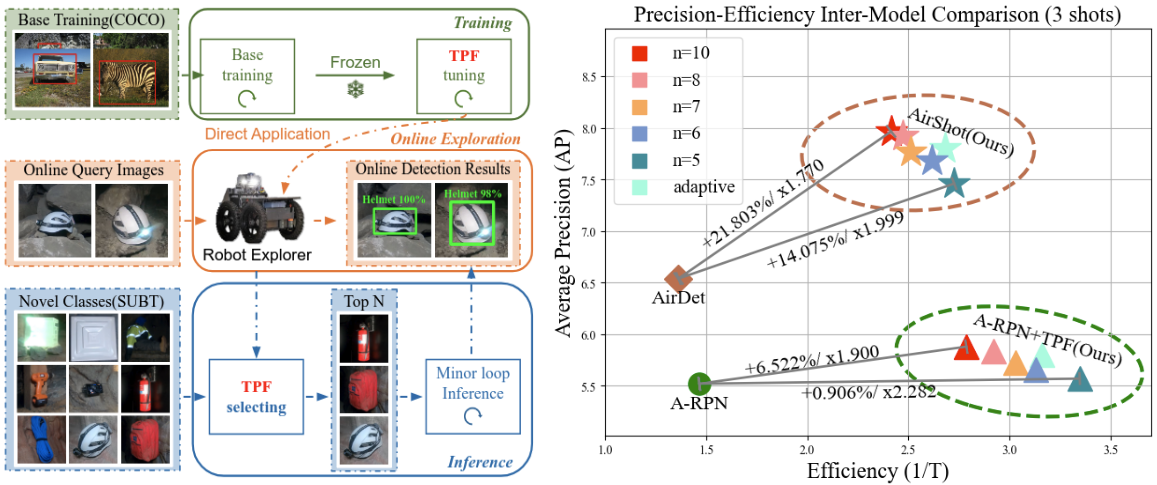

(The left are our improved pipeline and right is the results among fine-tuning free models)


The pipeline of the autonomous exploration task and the framework of AirShot. During exploration, a few prior raw images that potentially contain novel objects (helmet) are sent to a human user first. Provided with online annotated few-shot data, the robot explorer is able to detect those objects by observing its surrounding environment.

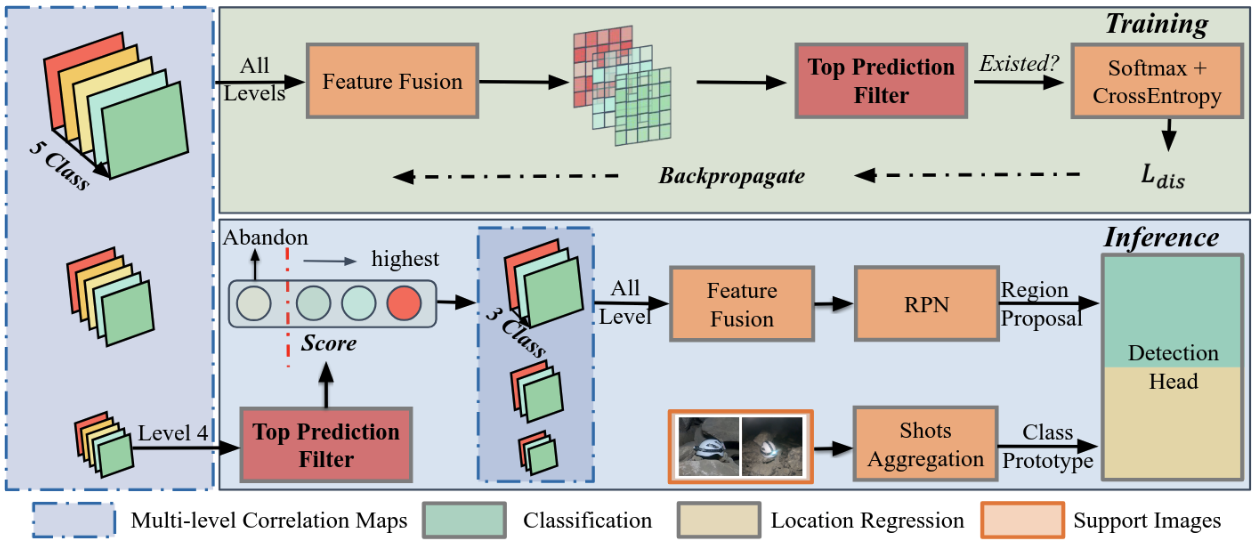

AirShot first needs offline data for base training, where Top Prediction Filter (TPF) learns to infer the existence directly from correlation map. During exploration, the inference is applied only to the top predictions filtered by TPF (original 20), enabling a lightweight inference strategy with few precision drop.




Selected Qualitative  Results



3-shot Detection in SubT Challenge


The provided support images and detection results in the real-world tests. AirShot is robust to distinct object scales and different illumination conditions.

For more results please refer to our offical Paper.





 /  Download

Acknowledgements

The work was done when Zihan Wang was interns at AirLab in Robotics Institute, CMU. The authors would like to thank all members of the Team Explorer for providing data collected from the DARPA Subterranean Challenge. Our code is built upon FewX, for which we sincerely express our gratitute to the authors.
